Software: integrated instruments
STM does not merely provide grinding and selection mills, but also an integrated series of instruments and controls for the mechanical system.

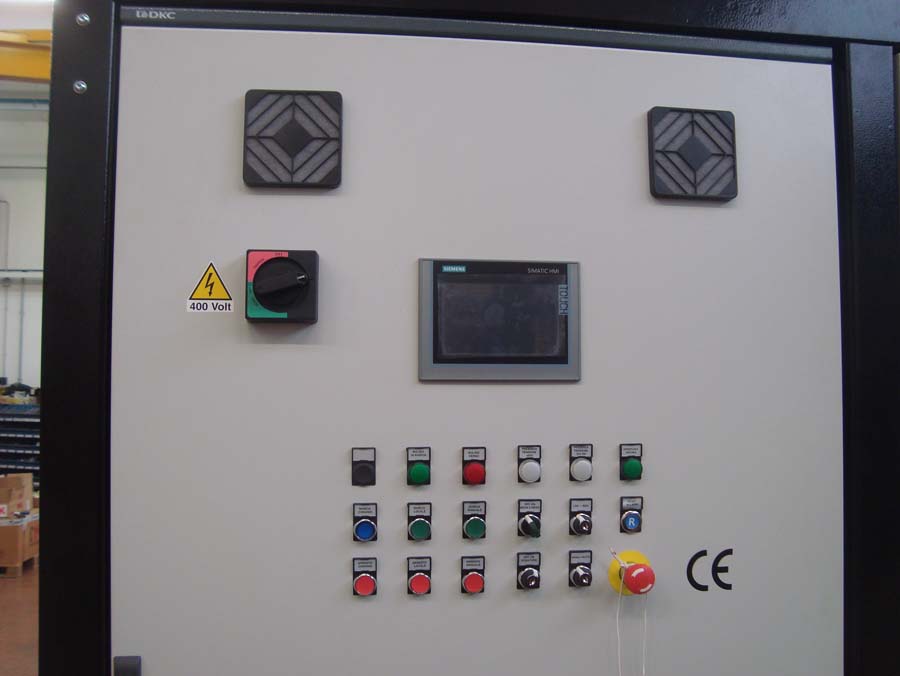

The interface between the plant and these instruments is managed via a control and monitoring panel using specially designed software which gives numerous options for use, all with operational safety in mind.
The technical parameters for production, either of the material to be processed or the desired results, are set on the control panel, and we can provide all the hardware and software devices and applications necessary for a trouble-free immediate start-up, with operational data and programmed cycles.

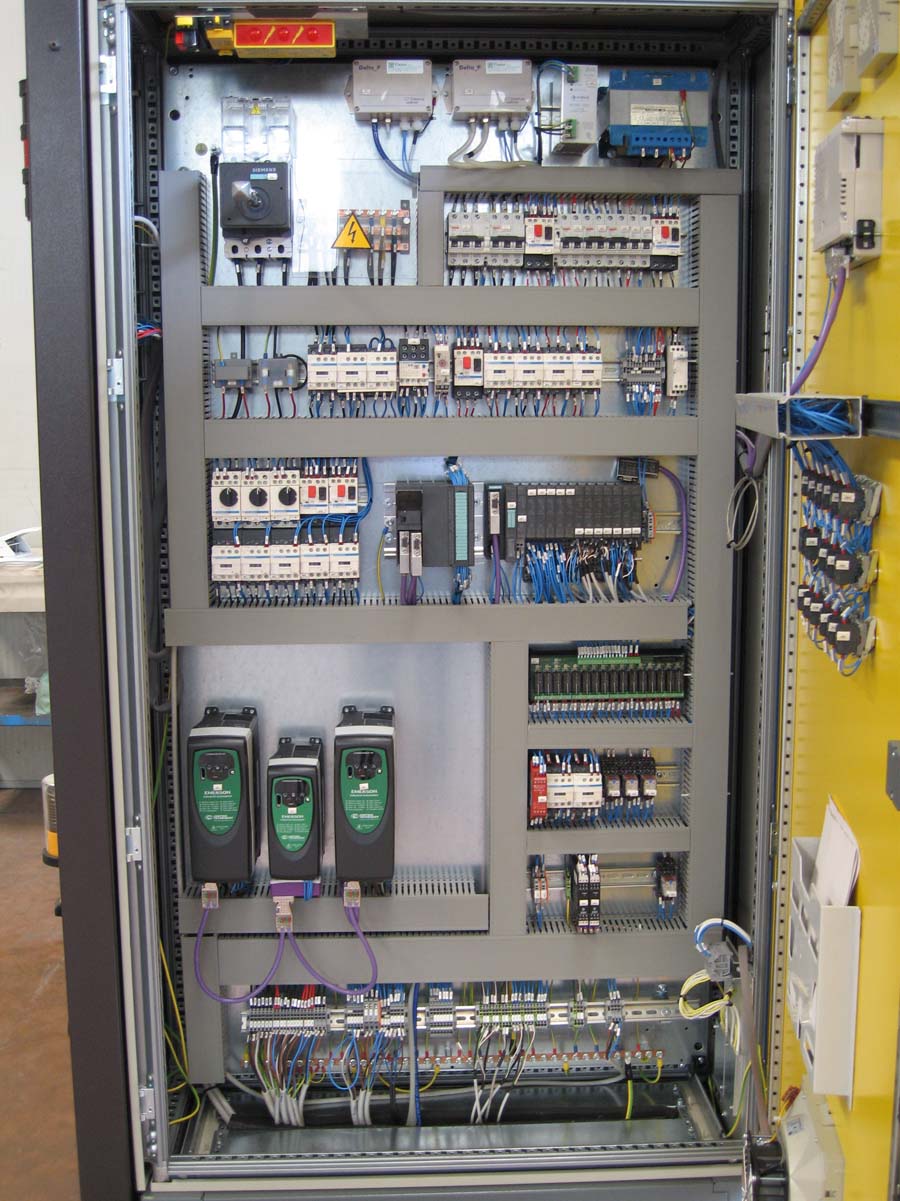

Managed parameters
Parameters managed by the software include:
- HOURLY PRODUCTION RATE
- SPEED AND VARIATION OF MOTOR ROTATION
- IN-PROCESS LASER CHECKING OF PARTICLE SIZE
- MONITORING OF AIR FLOW AND LOSS OF MACHINE LOAD
- MONITORING OF OPERATIONAL PRESSURE AND TEMPERATURE
- CONSUMPTION OF LIQUID / GASEOUS NITROGEN
- ENERGY USE OF MOTORS
- PID FEEDBACK ON OXYGEN AND NITROGEN GAS USE
- PID REGULATION OF LIQUID NITROGEN FLOW
- PID REGULATION OF HOURLY PRODUCTION RATE
- PID REGULATION OF PARTICLE SIZE
- ACCELEROMETER FOR MONITORING BEARINGS
- ALARMS FOR MAINTENANCE
- OPERATOR COMMUNICATION WITH HELP DESK
- GUIDED PROCEDURES FOR MACHINE ASSEMBLY
- ONLINE PLANT LAYOUT AND REGULATION

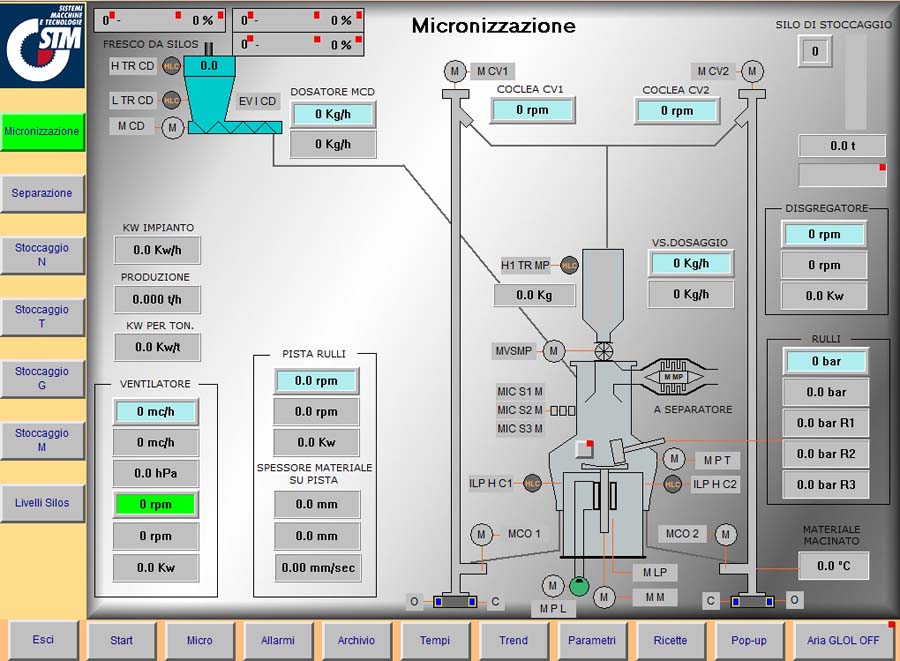

- REAL-TIME DISPLAY OF MACHINE DATA
- GRAPHIC DISPLAY OF OPERATIONAL TRENDS
- COMPLETE PLC MANAGEMENT OF OPERATIONAL CYCLES
- WIZARD” TUTORIAL FOR INPUTTING DATA AND OBJECTIVES
- SYSTEM SETTINGS CAN BE CUSTOMIZED
- FREE MANUAL USE OF MOTORS AND TOOLS
- DATA SENT TO CONTROL ROOM / LABORATORY

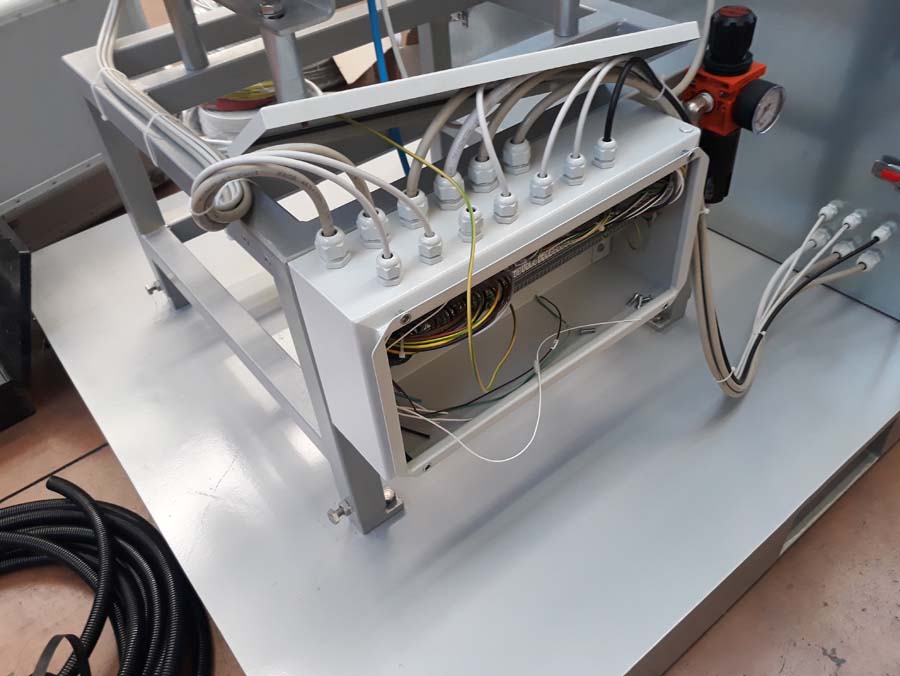

Fast connections, data communication and alarms

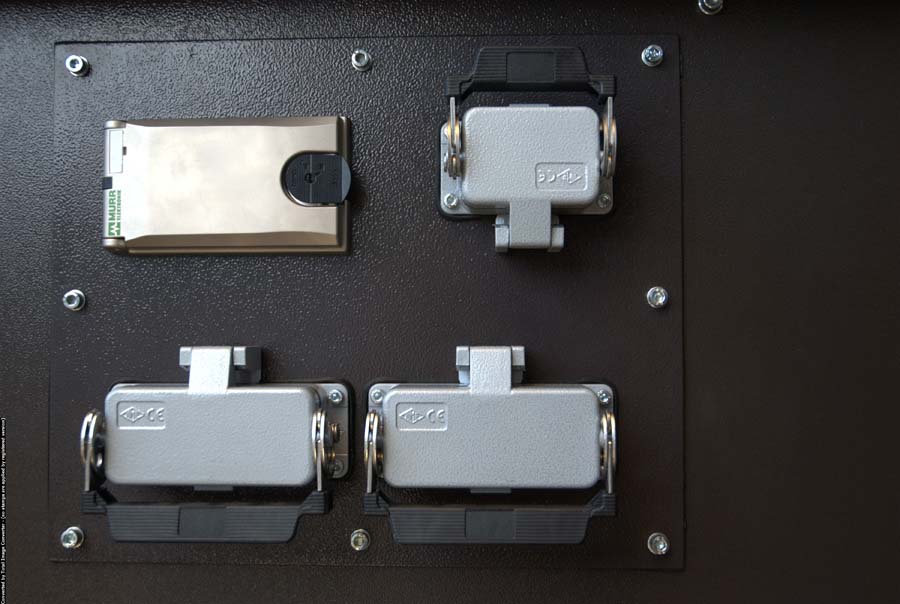

Connections normally installed on the machine / electronic control panel are:
- XC1 – External analogue signal connector 4 ÷ 20 mA
- XC2 – Hardware connector to control room or laboratory
- XC3 – Connector for system devices not directly controlled by the STM control panel
- K1 – Digital connection, signal from PLC, PROFIBUS communication
- K2 – Antenna for Ethernet connection (on request)
